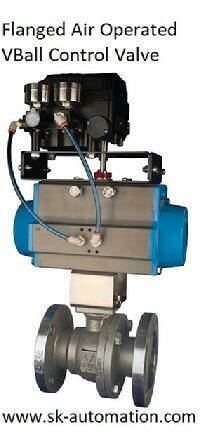

Vball Control Valve Flanged

$0.00
In stock
Product Details

VBall Control Valves with Flanged End Connections- Our Vball Control Valves give better control and save energy. We have the widest variety of VBall Control Valves on the Internet, and the experience to help you get what you need. Our quality and features will meet your toughest applications. Our quick deliveries will get you out of trouble.

Flange Ratings:150#, 300#, 600# and more
Turndown: 100:1
Applications: Steam, Hot Water, Chilled Water, Chemicals, Fracking Fluids, Refining, Compressed Air, and other Applications.
VBall Degrees Opening: 90, 60, 45, 30/60, 30, 15, 10, 5 and Slotted.
Deep Pocketed Seat Types: TFM, CTFM, PTFE, RPTFE, 50/50, UHMWPE, PEEK, Graphite, Metal Seats, Fire Safe to API607, KEL-F, Metal Backup Ring
Body Seals: RPTFE/Graphite is Standard, Many options in stock
Packing: TFM/Graphite is Standard with many options. Packing system includes Belleville washers for live loading and , Secondary Packing is Viton O-ring for VOC Fugitive Emmissions
Actuation and Control: Air Actuators and Electric Actuators
Valve Positioners: 3-15 psi, 4-20ma, 0-10vdc, Digital
